GTmedia GTX Combo 4K Android 9 Receiver
GTmedia GTX Combo 4K Android 9 Receiver
GTX Combo 4K Android 9 Receiver
1. CI Plus 1.4, SATA-HDD Bracket, PVR, 1000M Ethernet, YUV4:2:2 Decoder
2. Android 9.0, Amlogic S905X3, 2GB DDR4 RAM + 32GB ROM
3. DVB-S/S2/S2X, ATSC-T1.0/C, DVB-T/T2/C/C2, ISDBT
4. 8K H265_Main10 Decoder, 4K Display
5. Wifi 2.4G/5G + BT4.1, 802.1.1b/g/n/ac
6. PowerVu, BISS auto roll
7. Self-developed online media player GTPLAYER
8. Online movies
9. GTSHARE, SAT2I.P
10. M3U, CAM Protocol and CA Cards
Accessories:
1 * GTMEDIA GTX Combo TV Box / 1 * GTMEDIA GT Combo TV Box
1 * Bluetooth Remote Control,
1 * Adapter
1 * HDMI Cable
1 * User Manual
1 * Gift Box
Specifications in detail:
CPU
Amlogic S905X3, 64-bit quad-core ARM® Cortex™ A55 CPU up to 2.0GHz (DVFS)
GPU
Dual-core Mali-G31 MP2, up to 850M (DVFS)
RAM
2GB DDR4
ROM
32GB EMMC
3D Graphics
OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decoder
Audio Decoder
AAC stereo, 2x I2S in, 8x I2S out, 8x DAIC, MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, Dolby +, DTS
Display Panel
4-digit white LED display, with multi-functional indicators
SATA HDD
2.5-inch SATA HDD bracket
LED Indicator
Power On: Green; Standby: Red; Remote Control: Green blink
Button
None
WiFi
Built-in 2.4G/5.0G WiFiSupport IEEE 802.1.1b/g/n/ac
Ethernet
10M/100M/1000M
Bluetooth
BT4.1
Infrared
Dual-purpose infrared remote control

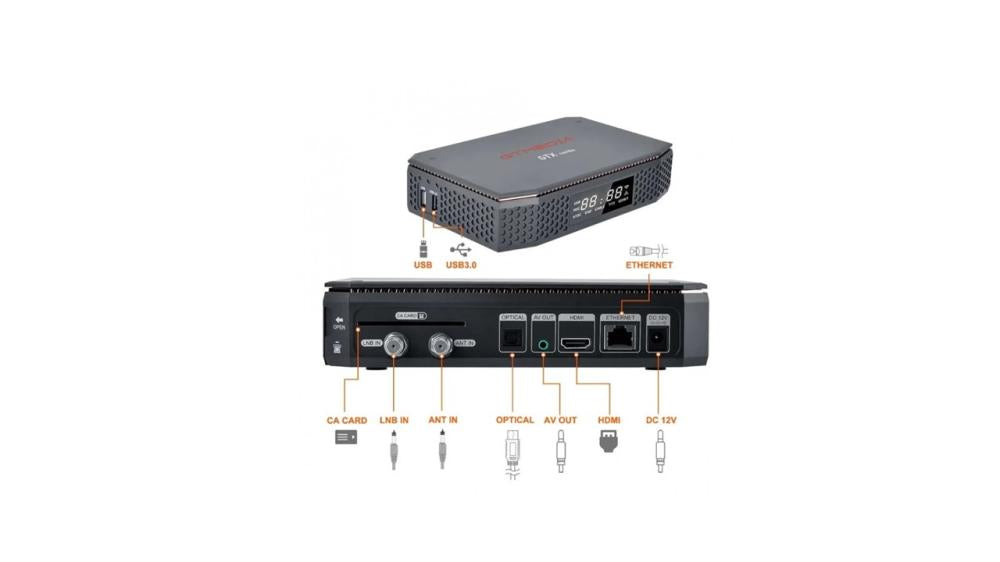

Rear Panel
Ant In (EC-type IEC169-2 Female)
LNB In (Frequency Range 950MHz to 2150MHz)
HD OUT (HDMI2.1, 8K x 4K @ 24 max resolution output)
1 * USB2.0 + 1 * USB3.0 Host
1 * AV Out
1 * SPDIF
1 * RJ45
1 * CA Card
1 * CI Slot (optional)
Power (DC 12V/3A)
DVB-S/S2 Specifications
System Standard
ETS 302 307
Frequency Range
950 ~ 2150MHz for DVB-S/S2/S2X
LNB Power and Polarization
DiSEqC1.0/1.1/1.2/USALS motor full support,
Support Unicable (DSS/DSR), 13/18V DC @ 400mA max, 22KHz ± 0.4KHz (0.6V ± 0.2V) tone, Overload protection
Input Level Range
-80dBm ~ -20dBm (average power)
Symbol Rates
DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward Error Correction Rate
1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier Frequency Acquisition Range
± 5MHz for symbol rates above 3 Mbps and ± 3MHz for remaining symbol rates
Symbol Rates
Symbol rate range:
QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M
Roll-off Factors
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates
1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6,
8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC symbol rates
Features
Support CCM/VCM/ACM
Support PLHEADER scrambling (AMC)
Integrated LDPC and BCH decoders
Ant. Connector
Connector: IEC Type Female Input Impedance: 75 Ω
DVB-T/T2 Specifications
System Standard
ETSI EN 302 755
Frequency Range
VHF: 174 ~ 230MHz, UHF: 470 ~ 862MHz for DVB-T/T2
Demodulation
COFDM, 16QAM,64QAM,256QAM
Bandwidth Model
6MHZ, 7MHZ and 8MHZ
Country
Italy, Poland, Russia, Spanish, Sweden, UK, Germany, Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.
FEC Code Rate
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
FFT
2K and 8K
Guard Interval
1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Input Signal Level:
Min -80dbm max -20dbm (64QAM, 8K 1/8, 7/8)
Antenna Power
5V DC @ 150mA max
Ant. Connector
IEC 169-2, Female Input Impedance: 75 Ω

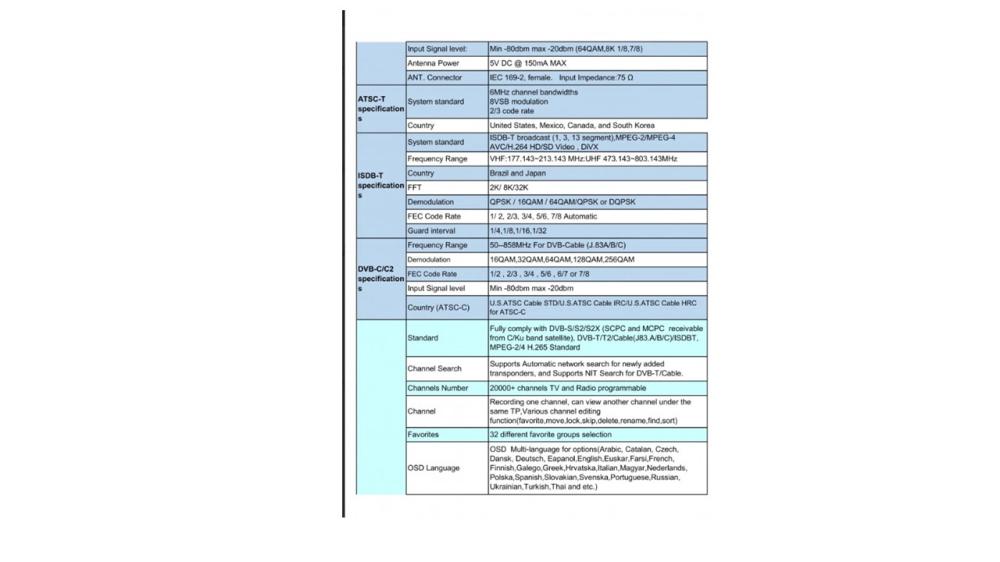

ATSC-T Specifications
System Standard
6MHz Channel Bandwidth
8VSB Modulation
Code Rate 2/3
Country
USA, Mexico, Canada, and South Korea
ISDB-T Specifications
System Standard
ISDB-T Broadcast (1, 3, 13 segments), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX
Frequency Range
VHF:177.143 ~ 213.143 MHz:UHF 473.143 ~ 803.143MHz
Country
Brazil and Japan
FFT
2K/ 8K/32K
Demodulation
QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC Code Rate
1/2, 2/3, 3/4, 5/6, 7/8 Auto
Guard Interval
1/4,1/8,1/16,1/32
DVB-C/C2 Specifications
Frequency Range
50 -- 858MHz for DVB-C cable (J.83A/B/C)
Demodulation
16QAM,32QAM,64QAM,128QAM,256QAM
FEC Code Rate
1/2, 2/3, 3/4, 5/6, 6/7, or 7/8
Input Signal Level
Min -80dbm max -20dbm
Country (ATSC-C)
US ATSC Cable STD/US ATSC Cable IRC/US ATSC Cable HRC ATSC-C
Software Features
Standard
Fully compliant with DVB-S/S2/S2X (SCPC & MCPC receivable from C/Ku band satellites), DVB-T/T2/Cable (J83.A/B/C)/ISDBT, MPEG-2/4 H.265 standard
Channel Search
Supports automatic network search for newly added transponders, supports NIT search for DVB-T/Cable.
Number of Channels
20000+ TV and radio channels for programming
Channel
Record one channel, can view another channel under the same TP, various channel editing functions (favorite, move, lock, skip, delete, rename, find, sort)
Favorites
32 different favorite groups selection
OSD Language
OSD Multi-language for options (Arabic, Catalan, Czech,
Dansk, German, Espanol, English, Euskera, Persian, French,
Finnish, Galego, Greek, Hrvatska, Italian, Magyar, Nederlands,
Polska, Spanish, Slovak, Svenska, Portuguese, Russian,
Ukrainian, Turkish, Thai, etc.)
EPG
Full support for 7-day Electronic Program Guide (EPG)
OSD Color
256 colors/32-bit OSD with anti-flicker
Parental Ctrl
Parental control for channels
Easy Menu
Plug and play installation, with an easy to use menu system
PAL/NTSC
Automatic PAL/NTSC conversion
Subtitle
DVB EN300743 and EBU support
Teletext
DVB ETS300472 support by VBI and OSD
Time Set
Time set by GMT offset automatic and manual, Summer Time support
Timer
5 event timers, Off/Once/Daily/Weekly mode
USB 3.0/2.0
Support FAT/FAT32/NTFS large capacity hard disk
PVR Option
HDD for PVR, timeshift, playback of media files
Media Encoding
TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files
Audio Encoding
WMA, MP3, HE-AAC, Dolby Plus, DTS
Image Encoding
Support JPEG, BMP, PNG, GIF
Software Upgrade
Software upgrades through USB port, support OTA and HTTP/FTP upgrade.
Packaging
Product Dimensions
202*135*50mm
Packaged Size
275*210*58mm
Carton Size
570*366*295mm (12 pcs/ctn)
Unit Weight
0.88kg with gift box
Carton Quantity and Weight
12 pcs/carton, 11.3 kg
Accessories
Gift box, adapter, Bluetooth remote control, HDMI cable, user manual
Physical
Power Supply
AC IN100-250V, DC 12V/3000mA
Power Consumption
12W in operation
≦1W standby power mode
Temperature
Operation 0~+45℃; Storage -10~+60℃
Humidity
20~90%, non-condensed
